MATLAB
Source code: https://github.com/VILLASframework/node/tree/master/clients/matlab
MATLAB (matrix laboratory) is a multi-paradigm numerical computing environment and proprietary programming language developed by MathWorks. MATLAB allows matrix manipulations, plotting of functions and data, implementation of algorithms, creation of user interfaces, and interfacing with programs written in other languages, including C, C++, C#, Java, Fortran and Python.
Integration of MATLAB with VILLASnode is relatively is relatively easy by using MATLABs Instrument Control Toolbox.
The Instrument Control Toolbox provides a udp() function which can be used to open UDP/IP connections to remote systems like VILLASnode.
Note: Please note that MATLAB is usually not suited for real-time operation. Please have a look at OPAL-RTs RT-Lab environment if real-time execution is a requirement.
Example
Please have a look at the clients/matlab/ directory for an exemplary VILLASnode configuration file and MATLAB code.
You can run this example by execution this receiver script in your MATLAB prompt and starting VILLASnode by running the following command in your shell:
villas-node villas.conf
Output

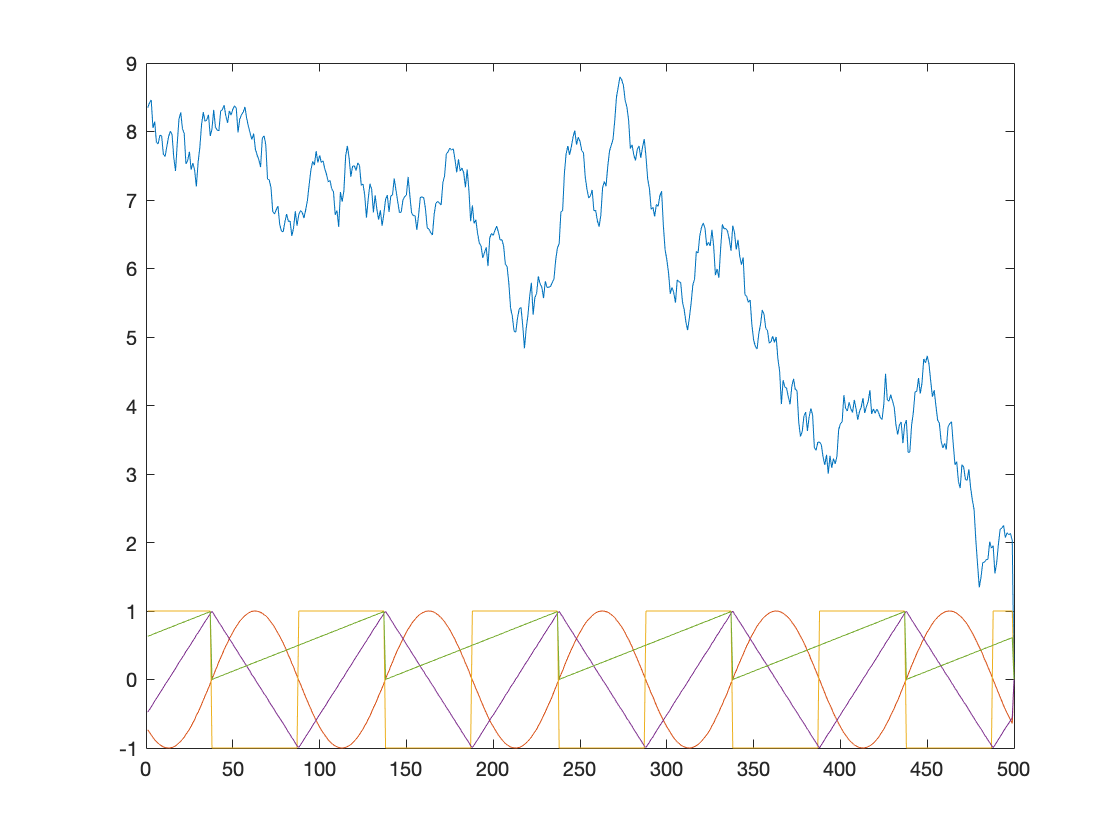

The following figure shows the output of the MATLAB plot() function with the signals generated by the signal node-type.
